Malone EcoLight™ Sport Trailer Trailers

The EcoLight™ is our most affordable kayak trailer. Each unit is proudly designed and built in the USA with high grade galvanized steel for years of use. These trailers have a speed rating of 70 mph while transporting loads up to 400 lbs. Features a reinforced extra-long tongue, 58″ wide steel load bars, molded fenders, 8″ high-speed tires, powder coated rims and a 2″ receiver with lift handle.

This trailer serves as the base frame for the EcoLight™ Packages and is DOT and Transport Canada certified. All parts and workmanship are guaranteed with a Five Year Limited Warranty. Assembles in 3-5 hours with common shop tools. Detailed assembly instructions included.

---

Features:

• Marine grade galvanized frame
• DOT approved submersible incandescent lighting
• 8″ – five lug high-speed powder coated wheels
• Injection molded fenders
• 58″ coated steel load bars
• 2pc extended tongue
• Flat four wire harness
• Tongue skid plate
• Leaf spring suspension
• Galvanized heavy duty axle
• Five Year Limited Warranty
• Made in the USA

---

Specifications:

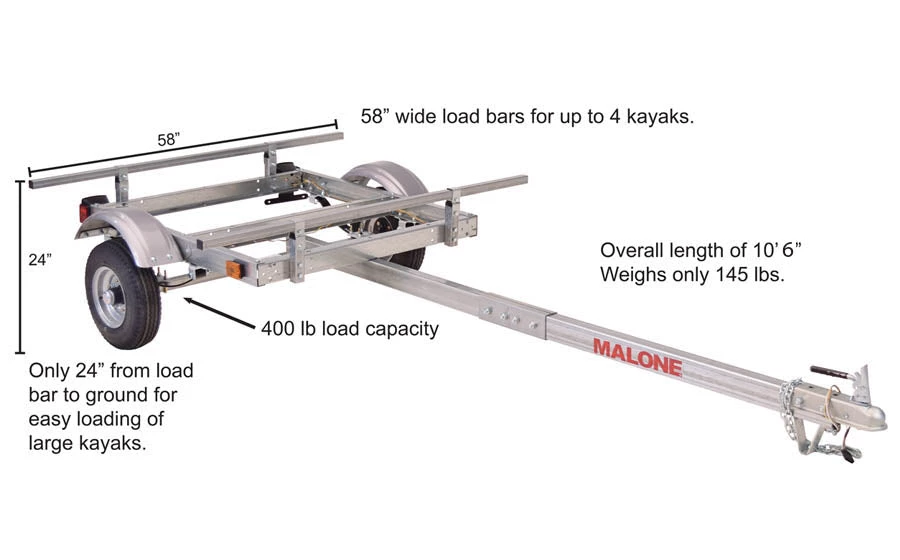

• Width: 58″ (55″ without cross bars)
• Frame Width Assembled (Without fenders): 40″
• Length: 10′ 9″
• Weight: 145 lb. (Without accessories)
• Capacity: 400 lb. / 14′ canoe or kayak
• Frame: Marine grade galvanized steel
• Hitch: 2″ receiver
• Required Ball Size for Vehicle Attachment: 2″
• Ball Height: 14″ From Ground – To Top Of Ball
• Wheel Specifications: 8″ Diameter; Rated to 70 MPH
• Tire Specifications: 4.80 / 4.00-8″, Load Range B, (785 LB)
• Recommended Tire Pressure: 40 PSI, 90 PSI Max
• Tongue Weight (Unloaded): 12 lb
• Cross Bar Spread: 38.5″ (Fixed)
• Height of Cross Bars from Ground: 26″
